KT5110 | IFM electronic
Piezo switch, On-Off, illuminable, red/green, PA, IP65/IP67/IP69K, KT5110
Order No.: 81P9331
EAN: 4021179289887
MPN:
KT5110
Unit Price (€ / pc.)
111.1936 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
111.19 € *
Price list
Quantity
Price per unit*
1 pcs.
111.1936 €
5 pcs.
106.8263 €
10 pcs.
102.8517 €
*incl. VAT plus shipping costs
**Subject to prior sale

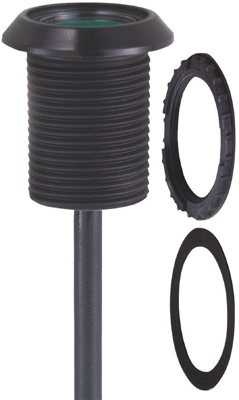

Illuminated capacitive touch sensor, KT5110, IFM
The KT5110 is a illuminated capacitive touch sensor with non-contact switching without mechanical pressure. Also it has an easy installation in housing with Ø 22.5 mm drill hole. Working principle: static.
Features
- Static evaluation principle protects against unauthorised use
- Oil-resistant, impact and scratch resistant
- Wear-free and maintenance-free
Technical specifications
| Connection | Kabel 2 m | |
| can be illuminated | Yes | |
| Lighting voltage | 12-30 VDC | |
| Farbe der Beleuchtung | rot/grün | |
| Color of body | schwarz | |
| Shell Material | PA | |
| Latching switching function | Ein-Aus | |
| switching current | 30 mA | |
| Degree of protection (IP) | IP65/IP67/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
