PA3589 | IFM electronic
Pressure transmitter, 0-0.1 bar/0-100 mbar/0-40.16 inH2O/0-10 kPa, 9.6-32 VDC, PA3589
Unit Price (€ / pc.)
443.9890 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
443.99 € *
Price list
Quantity
Price per unit*
1 pcs.
443.9890 €
3 pcs.
432.8030 €
*incl. VAT plus shipping costs
**Subject to prior sale

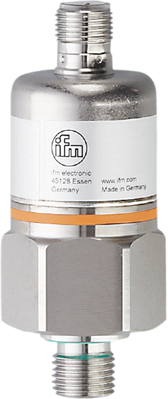

Electronic pressure sensor, PA3589, IFM electronic
Features
- Precise linear 4...20 mA output signal
- High repeatability and low linearity error
- With long-term stability thanks to high overload protection
- Robust stainless steel housing for use in harsh industrial environments
- Wide operating temperature range
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | Relativdruck | |
| Durchmesser | 30 mm | |
| Gehäuse | zylindrisch | |
| Länge | 79.5 mm | |
| max. Temperatur | 80 °C | |
| Messbereich | 0-0,1 bar/0-100 mbar/0-40,16 inH2O/0-10 kPa | |
| min. Temperatur | -25 °C | |
| Montage | G 1/4 Außengewinde (DIN EN ISO 1179-2), M5 Innengewinde | |
| Produkt-Art | Drucktransmitter | |
| Spannung | 9,6-32 VDC |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 90262020 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
