PA9020 | IFM electronic
PA9020, Electronic pressure sensor, 0...400 bar, 0infrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7584
EAN: 4021179183734
MPN:
PA9020
Unit Price (€ / pc.)
396.1867 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
396.19 € *
Price list
Quantity
Price per unit*
1 pcs.
396.1867 €
3 pcs.
386.2145 €
*incl. VAT plus shipping costs
**Subject to prior sale

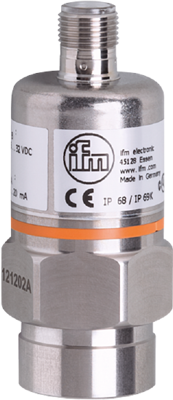

Electronic pressure sensor, PA9020, IFM electronic
Features
- Precise linear 0...10 V output signal
- High repeatability and low linearity error
- With long-term stability thanks to high overload protection
- Robust stainless steel housing for use in harsh industrial environments
- Large operating temperature range and high protection rating
Technical specifications
| Version | electronic pressure sensor | |
| max. operating temperature | 80 °C | |
| measurement range | 0-400 bar/0-5800 psi/0-40 MPa | |
| min. operating temperature | -25 °C | |
| Assembly | G 1/4 internal thread | |
| Voltage | 16-32 VDC |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 90262020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
