PA9023 | IFM electronic

PA9023, Electronic pressure sensor, 0...25 bar, 0.infrared light, Lens type standard, (28 x 21)...(

Order No.: 82P7587
EAN: 4021179183765
MPN:
PA9023
IFM electronic
PA9023 IFM electronic Pressure Sensors
Image may differ
Unit Price (€ / pc.)
385.0245 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
385.02 € *
Price list
Quantity
Price per unit*
1 pcs.
385.0245 €
3 pcs.
375.3260 €
*incl. VAT plus shipping costs
**Subject to prior sale

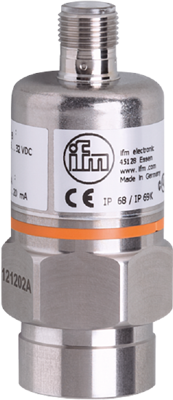

Electronic pressure sensor, PA9023, IFM electronic

Features

  • Precise linear 0...10 V output signal
  • High repeatability and low linearity error
  • With long-term stability thanks to high overload protection
  • Robust stainless steel housing for use in harsh industrial environments
  • Wide operating temperature range
Technical specifications
Version electronic pressure sensor
max. operating temperature 80 °C
measurement range 0-25 bar/0-363 psi/0-2.5 MPa
min. operating temperature -25 °C
Assembly G 1/4 internal thread
Voltage 16-32 VDC
Logistics
Country of origin RO
Customs tariff number 90262020
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
