PE2094 | IFM electronic

Pressure sensor, -1-10 bar/-14.6-145 psi/-0.1-1 MPa, 18-30 VDC, PE2094

Order No.: 82P7597
EAN: 4021179308472
MPN:
PE2094
Series: PE
PE2094 IFM electronic Pressure Sensors
Image may differ
Unit Price (€ / pc.)
630.5096 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
630.51 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
630.5096 €

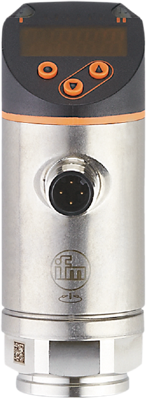

Electronic pressure sensor, PE2094, IFM electronic

Features

  • Two switching outputs, one of them programmable as IO-Link and one as analogue output
  • Red/green display for clear identification of the acceptable range
  • The process connection can be rotated for optimum alignment
  • With long-term stability thanks to high overload protection
  • Robust design for use in harsh industrial environments
Technical specifications
Produkt-Art Drucksensor
Ausführung mit Display, Relativdruck, I/O-Link, PNP/NPN
Messbereich -1-10 bar/-14,6-145 psi/-0,1-1 MPa
Schaltfunktion Schließer/Öffner
Spannung 18-30 VDC
Montage G 1/4 Innengewinde
Gehäuse zylindrisch
Anschluss M12-Steckverbinder
Durchmesser 34 mm
Länge 90.7 mm
min. Temperatur -25 °C
max. Temperatur 80 °C
Logistics
Ursprungsland DE
Zolltarifnummer 90262020
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
