PE2096 | IFM electronic
PE2096, Electronic pressure sensor, -0.125...2.5 binfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7598
EAN: 4021179308489
MPN:
PE2096
Unit Price (€ / pc.)
630.5096 € *
Available: 0 pcs.
Leadtime: 1 Week **

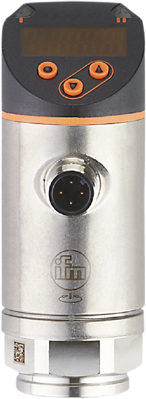

Electronic pressure sensor, PE2096, IFM electronic
Features
- Two switching outputs, one of them programmable as IO-Link and one as analogue output
- Red/green display for clear identification of the acceptable range
- The process connection can be rotated for optimum alignment
- With long-term stability thanks to high overload protection
- Robust design for use in harsh industrial environments
Technical specifications
| Version | electronic pressure sensor | |
| max. operating temperature | 80 °C | |
| measurement range | -0.125-2.5 bar/-125-2500 mbar/-1.8-36.25 psi/-12.5-250 kPa | |
| min. operating temperature | -25 °C | |
| Assembly | G 1/4 internal thread | |
| Voltage | 18-30 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90262020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
