PF2954 | IFM electronic
Pressure sensor, -0.5-10 bar/-7-145 psi/-50-1000 kPa/-0.05-1 MPa, 20-30 VDC, PF2954
Nicht geeignet für Neudesigns, LTB: 31.03.2025
Unit Price (€ / pc.)
997.3628 € *
Available: 0 pcs.
Leadtime: 1 Week **

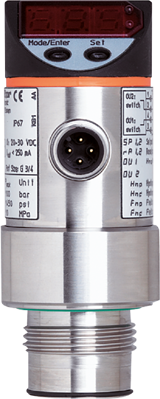

Electronic pressure sensor, PF2954, IFM electronic
Features
- Combined level measurement and point level detection with analogue / switching output
- Programmable analogue and switching output
- With long-term stability thanks to high repeatability and low linearity error
- Hygienic design for the requirements of the food and beverage industry
- Flush mount installation in containers, tanks and pipes
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | Relativdruck, PNP/NPN | |
| Durchmesser | 34 mm | |
| Gehäuse | zylindrisch | |
| Länge | 91.1 mm | |
| max. Temperatur | 80 °C | |
| Messbereich | -0,5-10 bar/-7-145 psi/-50-1000 kPa/-0,05-1 MPa | |
| min. Temperatur | -25 °C | |
| Montage | G 3/4 Außengewinde, Frontbündig | |
| Produkt-Art | Drucksensor | |
| Schaltfunktion | Schließer/Öffner | |
| Spannung | 20-30 VDC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 90262020 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
