PG2450 | IFM electronic
Pressure sensor, 0-400 bar/0-5800 psi, 18-32 VDC, PG2450
Unit Price (€ / pc.)
756.2212 € *
Available: 0 pcs.
Leadtime: 1 Week **

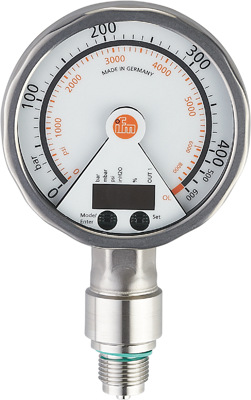

Electronic pressure sensor, PG2450, IFM electronic
Features
- Analogue display, pressure switch and transmitter in one unit
- Excellent readability also over a long distance
- Rotatable display with LED bar graph for switch point indication
- Programmable switching output and scalable analogue output
- Robust stainless steel housing for use in harsh industrial environments
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | Relativdruck, PNP/NPN, Analoganzeige | |
| Durchmesser | 100 mm | |
| Länge | 169 mm | |
| max. Temperatur | 80 °C | |
| Messbereich | 0-400 bar/0-5800 psi | |
| min. Temperatur | -20 °C | |
| Montage | G 1/2 Außengewinde | |
| Produkt-Art | Drucksensor | |
| Schaltfunktion | Schließer/Öffner | |
| Spannung | 18-32 VDC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 90262020 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
