PG2739 | IFM electronic
Pressure sensor, -1-1 bar/-1000-1000 mbar/-100-100 kPa, 18-32 VDC, PG2739
Unit Price (€ / pc.)
1,005.3715 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1,005.37 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,005.3715 €

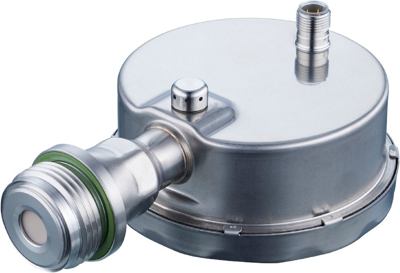

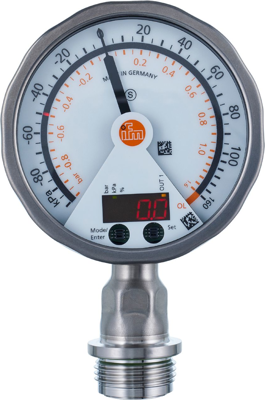

Electronic pressure sensor, PG2739, IFM electronic
Features
- Analogue display, pressure switch and transmitter in one unit
- Excellent readability also over a long distance
- Rotatable display with LED bar graph for switch point indication
- Hygienic, robust stainless steel housing for the requirements of the food and beverage industry
- Flush process connection for use in CIP and SIP processes
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | Relativdruck, Vakuum, PNP/NPN, Analoganzeige | |
| Durchmesser | 100 mm | |
| Länge | 153 mm | |
| max. Temperatur | 80 °C | |
| Messbereich | -1-1 bar/-1000-1000 mbar/-100-100 kPa | |
| min. Temperatur | -25 °C | |
| Montage | G 1 Außengewinde | |
| Produkt-Art | Drucksensor | |
| Schaltfunktion | Schließer/Öffner | |
| Spannung | 18-32 VDC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 90262020 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
