PI008A | IFM electronic
Pressure sensor, -0.0124-0.25 bar/-12.4-250 mbar/-5-100.4 inH2O/-1.24-25 kPa, 18-32 VDC, PI008A
Unit Price (€ / pc.)
1,261.2929 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1,261.29 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,261.2929 €

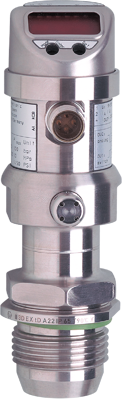

Combined pressure sensor, PI008A, IFM electronic
Features
- For applications in hazardous areas
- With switching output and analogue output
- Scalable analogue output with adjustable span and zero point
- Resistant to high-pressure cleaning with aggressive cleaning agents
- Clearly visible 4-digit LED display
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | mit Display, Relativdruck, Vakuum, PNP/NPN | |
| Durchmesser | 36 mm | |
| Gehäuse | zylindrisch | |
| Länge | 132 mm | |
| max. Temperatur | 60 °C | |
| Messbereich | -0,0124-0,25 bar/-12,4-250 mbar/-5-100,4 inH2O/-1,24-25 kPa | |
| min. Temperatur | -20 °C | |
| Montage | G 1 Außengewinde | |
| Produkt-Art | Drucksensor | |
| Schaltfunktion | Schließer/Öffner | |
| Spannung | 18-32 VDC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 90262020 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
