PI2209 | IFM electronic
PI2209, Electronic pressure sensor, -1000...1000 minfrared light, Lens type standard, (28 x 21)...(
Unit Price (€ / pc.)
1,196.1999 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1,196.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,196.1999 €

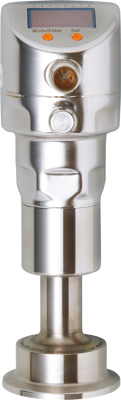

Electronic pressure sensor, PI2209, IFM electronic
Features
- For use in high temperatures in the food and beverage industry
- Robust stainless steel housing with hygienic front-flush design
- With two-wire and three-wire connection technology
- Reduced wiring complexity when operated as two-wire current loop
- Integrated clamp diaphragm seal with stainless steel membrane
Technical specifications
| Version | electronic pressure sensor | |
| max. operating temperature | 80 °C | |
| measurement range | -1000-1000 mbar/-14.5-14.5 psi/-100-100 kPa | |
| min. operating temperature | -25 °C | |
| Assembly | clamp DN40 (1.5") DIN 32676 (ISO 2852) | |
| Voltage | 18-32 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90262020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
