PI2714 | IFM electronic
Pressure sensor, -1-16 bar/-14.6-232 psi/-0.1-1.6 MPa, 18-32 VDC, PI2714
Unit Price (€ / pc.)
978.8583 € *
Available: 0 pcs.
Leadtime: 1 Week **

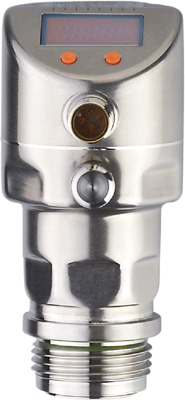

Electronic pressure sensor, PI2714, IFM electronic
Features
- Robust stainless steel housing for use in the food and beverage industry
- Hygienic, flush design
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High temperature resistance and high protection rating
- Programmable analogue and switching output
Technical specifications
| Product type | Drucksensor | |
| Version | mit Display, Relativdruck, Vakuum, I/O-Link, PNP/NPN | |
| measurement range | -1-16 bar/-14,6-232 psi/-0,1-1,6 MPa | |
| Latching switching function | Schließer/Öffner | |
| Voltage | 18-32 VDC | |
| Assembly | G 1 Außengewinde | |
| Enclosure | zylindrisch | |
| Connection | M12-Steckverbinder | |
| diameter | 50 mm | |
| Length | 106 mm | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 80 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90262020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
