PI2796 | IFM electronic
PI2796, Electronic pressure sensor, -0.124...2.5 binfrared light, Lens type standard, (28 x 21)...(
Unit Price (€ / pc.)
950.3340 € *
Available: 0 pcs.
Leadtime: 1 Week **

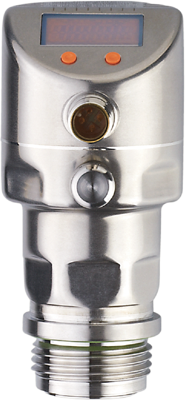

Electronic pressure sensor, PI2796, IFM electronic
Features
- Robust stainless steel housing for use in the food and beverage industry
- Hygienic, flush design
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High temperature resistance and high protection rating
- Programmable analogue and switching output
Technical specifications
| Version | electronic pressure sensor | |
| max. operating temperature | 80 °C | |
| measurement range | -0.124-2.5 bar/-124-2500 mbar/-1.8-36.27 psi/-12.4-250 kPa | |
| min. operating temperature | -25 °C | |
| Assembly | G 1 external thread | |
| Voltage | 18-32 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90262020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
