PI2894 | IFM electronic
Pressure sensor, -1-10 bar/-14.5-145 psi/-0.1-1 MPa, 18-32 VDC, PI2894
Unit Price (€ / pc.)
978.8583 € *
Available: 0 pcs.
Leadtime: 1 Week **

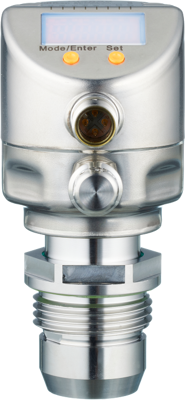

Electronic pressure sensor, PI2894, IFM electronic
Features
- Robust stainless steel housing for use in the food and beverage industry
- Hygienic, flush design
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High temperature resistance and high protection rating
- Programmable analogue and switching output
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | mit Display, Relativdruck, Vakuum, I/O-Link, PNP/NPN | |
| Durchmesser | 50 mm | |
| Gehäuse | zylindrisch | |
| Länge | 106 mm | |
| max. Temperatur | 80 °C | |
| Messbereich | -1-10 bar/-14,5-145 psi/-0,1-1 MPa | |
| min. Temperatur | -25 °C | |
| Montage | G 1 Außengewinde | |
| Produkt-Art | Drucksensor | |
| Schaltfunktion | Schließer/Öffner | |
| Spannung | 18-32 VDC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 90262020 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
