PIM693 | IFM electronic
Pressure sensor, -1-25 bar/-14.4-362.7 psi/-0.1-2.5 MPa, 18-32 VDC, PIM693
Nicht geeignet für Neudesigns, LTB: 31.03.2025
Unit Price (€ / pc.)
1,201.781 € *
Available: 0 pcs.
Leadtime: 1 Week **

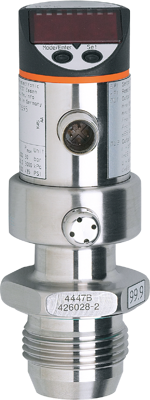

Combined pressure sensor, PIM693, IFM electronic
Features
- Two functions in one unit: Pump monitoring and pressure detection
- Reliable diagnosis of disturbances in the suction area and detection of cavitation
- Detection of outgassing liquids or trapped air in the pump
- Independent system-pressure monitoring with second switching output
- Pump control via analogue output
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | mit Pumpendiagnosefunktion, Relativdruck, Vakuum, PNP | |
| Durchmesser | 34 mm | |
| Gehäuse | zylindrisch | |
| Länge | 119 mm | |
| max. Temperatur | 80 °C | |
| Messbereich | -1-25 bar/-14,4-362,7 psi/-0,1-2,5 MPa | |
| min. Temperatur | -25 °C | |
| Montage | G 1 Außengewinde | |
| Produkt-Art | Drucksensor | |
| Schaltfunktion | Schließer/Öffner | |
| Spannung | 18-32 VDC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 90262020 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
