PIM694 | IFM electronic
Pressure sensor, -1-10 bar/-14.5-145 psi/-0.1-1 MPa, 18-32 VDC, PIM694
Unit Price (€ / pc.)
1,146.3151 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1,146.32 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,146.3151 €

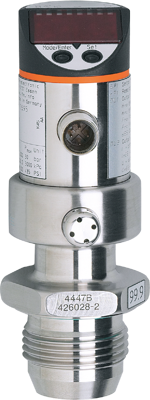

Combined pressure sensor, PIM694, IFM electronic
Features
- Two functions in one unit: Pump monitoring and pressure detection
- Reliable diagnosis of disturbances in the suction area and detection of cavitation
- Detection of outgassing liquids or trapped air in the pump
- Independent system-pressure monitoring with second switching output
- Pump control via analogue output
Technical specifications
| Product type | Drucksensor | |
| Version | mit Pumpendiagnosefunktion, Relativdruck, PNP | |
| measurement range | -1-10 bar/-14,5-145 psi/-0,1-1 MPa | |
| Latching switching function | Schließer/Öffner | |
| Voltage | 18-32 VDC | |
| Assembly | G 1 Außengewinde | |
| Enclosure | zylindrisch | |
| Connection | M12-Steckverbinder | |
| diameter | 34 mm | |
| Length | 119 mm | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 80 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90262020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
