PM1709 | IFM electronic
Pressure sensor, -1-1 bar/-1000-1000 mbar/-14.5-14.5 psi/-100-100 kPa, 18-30 VDC, PM1709
Unit Price (€ / pc.)
729.2677 € *
Available: 0 pcs.
Leadtime: 1 Week **

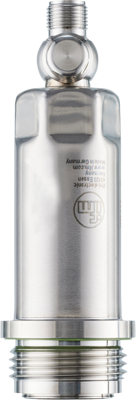

Electronic pressure sensor, PM1709, IFM electronic
Features
- Robust stainless steel housing for use in the food and beverage industry
- Hygienic, flush design
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High temperature resistance and high protection rating
Technical specifications
| Connection | M12-Steckverbinder | |
| Version | Relativdruck, Vakuum, Analogsignal, IO-Link | |
| diameter | 30.2 mm | |
| Enclosure | zylindrisch | |
| Length | 111 mm | |
| max. operating temperature | 80 °C | |
| measurement range | -1-1 bar/-1000-1000 mbar/-14,5-14,5 psi/-100-100 kPa | |
| min. operating temperature | -25 °C | |
| Assembly | G 1 Außengewinde | |
| Product type | Drucksensor | |
| Voltage | 18-30 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90262020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
