PM1789 | IFM electronic
Pressure sensor, -0.005-0.1 bar/-5-100 mbar/-0.073-1.45 psi/-0.5-10 kPa, 18-30 VDC, PM1789
Unit Price (€ / pc.)
729.2677 € *
Available: 0 pcs.
Leadtime: 1 Week **

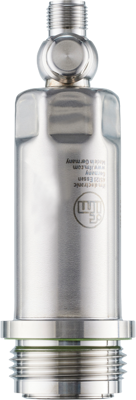

Electronic pressure sensor, PM1789, IFM electronic
Features
- Robust stainless steel housing for use in the food and beverage industry
- Hygienic, flush design
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High temperature resistance and high protection rating
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | Relativdruck, Analogsignal, IO-Link | |
| Durchmesser | 30.2 mm | |
| Gehäuse | zylindrisch | |
| Länge | 111 mm | |
| max. Temperatur | 80 °C | |
| Messbereich | -0,005-0,1 bar/-5-100 mbar/-0,073-1,45 psi/-0,5-10 kPa | |
| min. Temperatur | -25 °C | |
| Montage | G 1 Außengewinde | |
| Produkt-Art | Drucksensor | |
| Spannung | 18-30 VDC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 90262020 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
