PN2070 | IFM electronic
PN2070, Electronic pressure sensor, 0...400 bar, 0infrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7791
EAN: 4021179289023
MPN:
PN2070
Unit Price (€ / pc.)
636.8047 € *
Available: 0 pcs.
Leadtime: 1 Week **

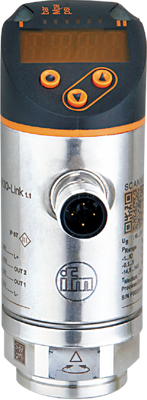

Electronic pressure sensor, PN2070, IFM electronic
Features
- Two switching outputs, one of them programmable as IO-Link and one as analogue output
- Red/green display for clear identification of the acceptable range
- The process connection can be rotated for optimum alignment
- With long-term stability thanks to high overload protection
- Robust design for use in harsh industrial environments
Technical specifications
| Version | electronic pressure sensor | |
| max. operating temperature | 80 °C | |
| measurement range | 0-400 bar/0-5800 psi/0-40 MPa | |
| min. operating temperature | -25 °C | |
| Assembly | G 1/4 internal thread (DIN EN ISO 1179-2) | |
| Voltage | 18-30 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90262020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
