PN7099, Electronic pressure monitor, -1...1 bar, -infrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7875
EAN: 4021179281270
MPN:
PN7099
Unit Price (€ / pc.)
530.5853 € *
Available: 0 pcs.
Leadtime: 1 Week **

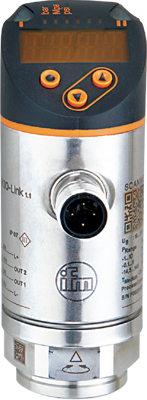

Electronic pressure monitor, PN7099, IFM electronic
Features
- Two switching outputs, one of them with IO-Link communication interface
- Red/green display for clear identification of the acceptable range
- The process connection can be rotated for optimum alignment
- With long-term stability thanks to high overload protection
- Robust design for use in harsh industrial environments
Technical specifications
| Version | electronic pressure switch | |
| max. operating temperature | 80 °C | |
| measurement range | -1-1 bar/-1000-1000 mbar/-14.5-14.5 psi/-29.4-29.4 inHg/-100-100 kPa | |
| min. operating temperature | -25 °C | |
| Assembly | G 1/4 internal thread | |
| Voltage | 18-30 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90262020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
