PN7270 | IFM electronic
PN7270, Electronic pressure monitor, 0...400 bar,infrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7878
EAN: 4021179281294
MPN:
PN7270
Unit Price (€ / pc.)
539.6055 € *
Available: 0 pcs.
Leadtime: 1 Week **

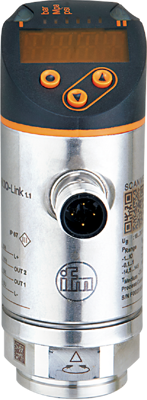

Electronic pressure monitor, PN7270, IFM electronic
Features
- Two switching outputs, one of them with IO-Link communication interface
- Red/green display for clear identification of the acceptable range
- The process connection can be rotated for optimum alignment
- With long-term stability thanks to high overload protection
- Robust design for use in harsh industrial environments
Technical specifications
| Version | electronic pressure switch | |
| max. operating temperature | 80 °C | |
| measurement range | 0-400 bar/0-5800 psi/0-40 MPa | |
| min. operating temperature | -25 °C | |
| Assembly | 1/4" NPT internal thread | |
| Voltage | 18-30 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90262020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
