PN7697 | IFM electronic
Pressure sensor, 0-1 bar/0-1000 mbar/0-14.5 psi/0-29.5 inHg/0-100 kPa, 18-30 VDC, PN7697
Unit Price (€ / pc.)
536.0236 € *
Available: 0 pcs.
Leadtime: 1 Week **

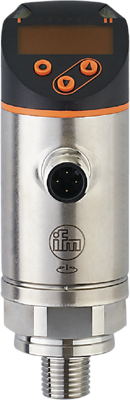

Electronic pressure monitor, PN7697, IFM electronic
Features
- Two switching outputs, one of them with IO-Link communication interface
- Red/green display for clear identification of the acceptable range
- The process connection can be rotated for optimum alignment
- With long-term stability thanks to high overload protection
- Robust design for use in harsh industrial environments
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | mit Display, Relativdruck, I/O-Link, PNP/NPN | |
| Durchmesser | 34 mm | |
| Gehäuse | zylindrisch | |
| Länge | 90.7 mm | |
| max. Temperatur | 80 °C | |
| Messbereich | 0-1 bar/0-1000 mbar/0-14,5 psi/0-29,5 inHg/0-100 kPa | |
| min. Temperatur | -25 °C | |
| Montage | 1/4" NPT Außengewinde | |
| Produkt-Art | Drucksensor | |
| Schaltfunktion | Schließer/Öffner | |
| Spannung | 18-30 VDC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 90262020 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
