PN7834 | IFM electronic

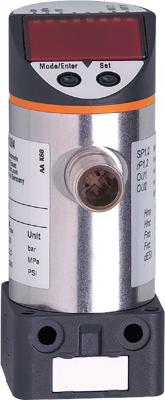

Pressure sensor, -1-10 bar/-14.5-145 psi/-0.1-1 MPa, 18-36 VDC, PN7834
Unit Price (€ / pc.)
438.5507 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
438.55 € *
Price list
Quantity
Price per unit*
1 pcs.
438.5507 €
3 pcs.
427.4956 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electronic pressure monitor, PN7834, IFM electronic
Features
- Two switching outputs, one of which can be configured as diagnostic output
- For use in pneumatic applications
- Clearly visible 4-digit LED display
- Differential pressure measurement without the need to connect a second pressure pick-up
- Country-specific pressure units selectable
Technical specifications
| Product type | Drucksensor | |
| Version | mit Display, Relativdruck, Differenzdruck, Vakuum, PNP/NPN | |
| measurement range | -1-10 bar/-14,5-145 psi/-0,1-1 MPa | |
| Latching switching function | Schließer/Öffner | |
| Voltage | 18-36 VDC | |
| Assembly | G 1/8 Innengewinde | |
| Enclosure | zylindrisch | |
| Connection | M12-Steckverbinder | |
| diameter | 34 mm | |
| Length | 86.6 mm | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 90262020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
