PNI021 | IFM electronic
Pressure sensor, 0-250 bar, 18-30 VDC, PNI021
Unit Price (€ / pc.)
818.8747 € *
Available: 0 pcs.
Leadtime: 1 Week **

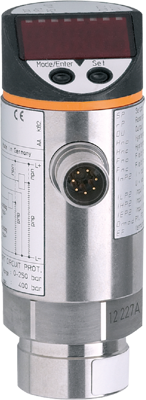

Electronic pressure monitor, PNI021, IFM electronic
Features
- Evaluation of external voltage or current values
- Continuous comparison of set/actual values directly in the sensor
- Automatic adjustment of the switch point
- Clearly visible 4-digit LED display
- Efficient differential pressure monitoring
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | mit Display, Relativdruck, Analogeingang, PNP/NPN | |
| Durchmesser | 34 mm | |
| Gehäuse | zylindrisch | |
| Länge | 91.5 mm | |
| max. Temperatur | 80 °C | |
| Messbereich | 0-250 bar | |
| min. Temperatur | -25 °C | |
| Montage | G 1/4 Innengewinde | |
| Produkt-Art | Drucksensor | |
| Schaltfunktion | Schließer/Öffner | |
| Spannung | 18-30 VDC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 90262020 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
