PP7554 | IFM electronic
Pressure sensor, -1-10 bar/-14.5-145 psi/-100-1000 kPa/-0.1-1 MPa, 9.6-36 VDC, PP7554
Unit Price (€ / pc.)
350.0266 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
350.03 € *
Price list
Quantity
Price per unit*
1 pcs.
350.0266 €
3 pcs.
341.2087 €
*incl. VAT plus shipping costs
**Subject to prior sale

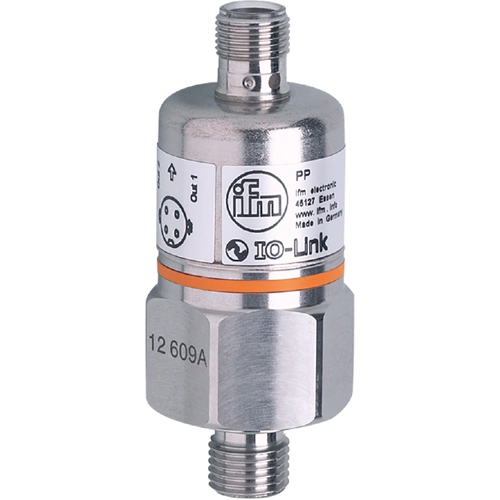

Electronic pressure sensor, PP7554, IFM electronic
Features
- Robust design for use in harsh industrial environments
- Two switching outputs, one of which can be configured as diagnostic output
- High shock and vibration resistance
- Lifespan of more than 100 million pressure cycles
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | Relativdruck, Vakuum, I/O-Link, PNP | |
| Durchmesser | 30 mm | |
| Gehäuse | zylindrisch | |
| Länge | 79.5 mm | |
| max. Temperatur | 85 °C | |
| Messbereich | -1-10 bar/-14,5-145 psi/-100-1000 kPa/-0,1-1 MPa | |
| min. Temperatur | -25 °C | |
| Montage | G 1/4 Außengewinde, M5 Innengewinde | |
| Produkt-Art | Drucksensor | |
| Schaltfunktion | Schließer/Öffner | |
| Spannung | 9,6-36 VDC |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 90262020 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
