PT2494 | IFM electronic
Pressure transmitter, -14.5-200 psi, 8.5-36 VDC, PT2494
Unit Price (€ / pc.)
180.5349 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
180.53 € *
Price list
Quantity
Price per unit*
1 pcs.
180.5349 €
3 pcs.
175.8225 €
*incl. VAT plus shipping costs
**Subject to prior sale

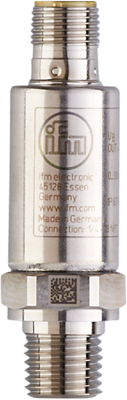

Electronic pressure sensor, PT2494, IFM electronic
Features
- Reliable detection of system pressure in industrial applications
- High shock and vibration resistance
- Excellent repeatability and low linearity error
- Lifespan of more than 60 million pressure cycles
- Compact and robust stainless steel housing for use where space is restricted
Technical specifications
| Connection | M12-Steckverbinder | |
| Version | Relativdruck, Analogsignal | |
| diameter | 18.9 mm | |
| Enclosure | zylindrisch | |
| Length | 66.9 mm | |
| max. operating temperature | 90 °C | |
| measurement range | -14,5-200 psi | |
| min. operating temperature | -40 °C | |
| Assembly | 1/4" NPT Außengewinde | |
| Product type | Drucktransmitter | |
| Voltage | 8,5-36 VDC |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 90262020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
