PT9550 | IFM electronic
Pressure transmitter, 0-400 bar/0-5800 psi/0-40 MPa, 16-36 VDC, PT9550
Unit Price (€ / pc.)
236.8457 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
236.85 € *
Price list
Quantity
Price per unit*
1 pcs.
236.8457 €
3 pcs.
230.6458 €
*incl. VAT plus shipping costs
**Subject to prior sale

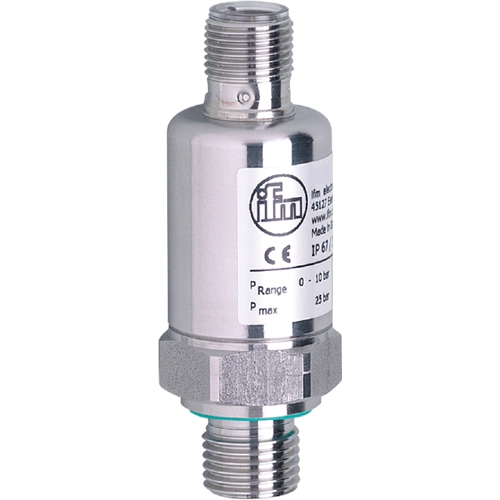

Electronic pressure sensor, PT9550, IFM electronic
Features
- For the reliable detection of the system pressure in mobile machines
- High shock and vibration resistance
- Excellent repeatability and low linearity error
- Lifespan of more than 50 million pressure cycles
- Compact and robust stainless steel housing for use where space is restricted
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | Relativdruck, Analogsignal | |
| Durchmesser | 22 mm | |
| Gehäuse | zylindrisch | |
| Länge | 65.1 mm | |
| max. Temperatur | 90 °C | |
| Messbereich | 0-400 bar/0-5800 psi/0-40 MPa | |
| min. Temperatur | -25 °C | |
| Montage | G 1/4 Außengewinde | |
| Produkt-Art | Drucktransmitter | |
| Spannung | 16-36 VDC |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 90262020 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
