PU5443 | IFM electronic
Pressure transmitter, 0-40 bar/0-580 psi/0-4 MPa, 16-36 VDC, PU5443
Unit Price (€ / pc.)
186.3659 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
186.37 € *
Price list
Quantity
Price per unit*
1 pcs.
186.3659 €
3 pcs.
181.4869 €
*incl. VAT plus shipping costs
**Subject to prior sale

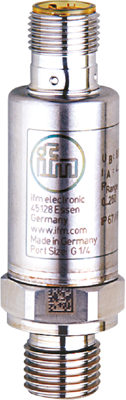

Electronic pressure sensor, PU5443, IFM electronic
Features
- Reliable detection of system pressure in industrial applications
- High shock and vibration resistance
- Excellent repeatability and low linearity error
- Lifespan of more than 60 million pressure cycles
- Compact and robust stainless steel housing for use where space is restricted
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | Relativdruck, Analogsignal | |
| Durchmesser | 19 mm | |
| Gehäuse | zylindrisch | |
| Länge | 66 mm | |
| max. Temperatur | 90 °C | |
| Messbereich | 0-40 bar/0-580 psi/0-4 MPa | |
| min. Temperatur | -40 °C | |
| Montage | G 1/4 Außengewinde (DIN EN ISO 1179-2) | |
| Produkt-Art | Drucktransmitter | |
| Spannung | 16-36 VDC |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 90262020 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
