PV7002 | IFM electronic
PV7002, Electronic pressure monitor, 0...100 bar,infrared light, Lens type standard, (28 x 21)...(
Order No.: 82P8075
EAN: 4021179310970
MPN:
PV7002
Unit Price (€ / pc.)
228.2777 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
228.28 € *
Price list
Quantity
Price per unit*
1 pcs.
228.2777 €
3 pcs.
222.2920 €
*incl. VAT plus shipping costs
**Subject to prior sale

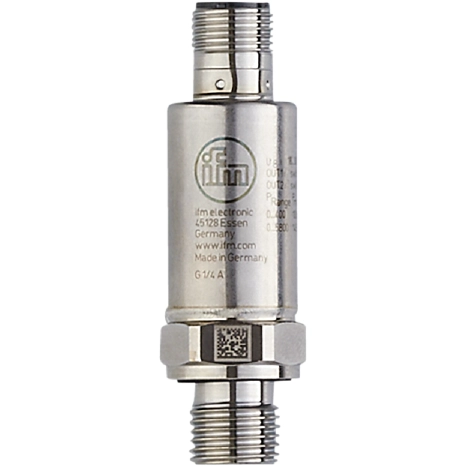

Electronic pressure monitor, PV7002, IFM electronic
Features
- Compact housing for use where space is restricted
- Very high overpressure and vacuum resistance
- Robust stainless steel housing with high shock and vibration resistance
- Lifespan of more than 60 million pressure cycles
- Two programmable switching outputs, one of them with IO-Link communication interface
Technical specifications
| Version | electronic pressure switch | |
| max. operating temperature | 90 °C | |
| measurement range | 0-100 bar/0-1450 psi/0-10 MPa | |
| min. operating temperature | -40 °C | |
| Assembly | G 1/4 external thread (DIN EN ISO 1179-2), M5 internal thread | |
| Voltage | 18-30 VDC |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 90262020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
