PV8001 | IFM electronic
Pressure sensor, 0-250 bar/0-3626 psi/0-25 MPa, 18-30 VDC, PV8001
Unit Price (€ / pc.)
245.7112 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
245.71 € *
Price list
Quantity
Price per unit*
1 pcs.
245.7112 €
3 pcs.
239.2733 €
*incl. VAT plus shipping costs
**Subject to prior sale

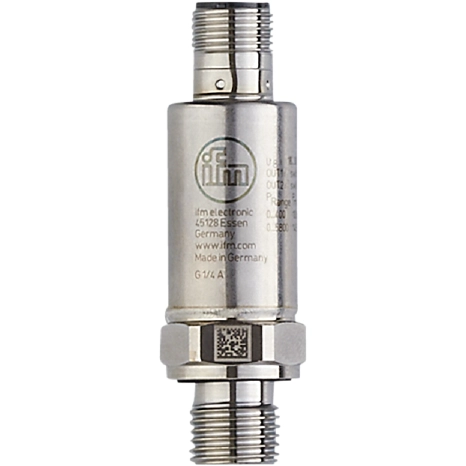

Electronic pressure monitor, PV8001, IFM electronic
Features
- Compact housing for use where space is restricted
- Very high overpressure and vacuum resistance
- Robust stainless steel housing with high shock and vibration resistance
- Two programmable switching outputs, one of them with IO-Link communication interface
Technical specifications
| Product type | Drucksensor | |
| Version | Relativdruck, I/O-Link, PNP/NPN | |
| measurement range | 0-250 bar/0-3626 psi/0-25 MPa | |
| Latching switching function | Schließer/Öffner | |
| Voltage | 18-30 VDC | |
| Assembly | G 1/4 Außengewinde (DIN EN ISO 1179-2), M5 Innengewinde | |
| Enclosure | zylindrisch | |
| Connection | M12-Steckverbinder | |
| diameter | 19 mm | |
| Length | 66 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 90 °C |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 90262020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
