PV8023 | IFM electronic
Pressure sensor, 0-60 bar/0-870 psi/0-6 MPa, 18-30 VDC, PV8023
Unit Price (€ / pc.)
245.7112 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
245.71 € *
Price list
Quantity
Price per unit*
1 pcs.
245.7112 €
3 pcs.
239.2733 €
*incl. VAT plus shipping costs
**Subject to prior sale

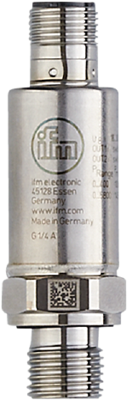

Electronic pressure monitor, PV8023, IFM electronic
Features
- Compact housing for use where space is restricted
- Very high overpressure and vacuum resistance
- Robust stainless steel housing with high shock and vibration resistance
- Two programmable switching outputs, one of them with IO-Link communication interface
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | Relativdruck, I/O-Link, PNP/NPN | |
| Durchmesser | 19 mm | |
| Gehäuse | zylindrisch | |
| Länge | 66 mm | |
| max. Temperatur | 90 °C | |
| Messbereich | 0-60 bar/0-870 psi/0-6 MPa | |
| min. Temperatur | -40 °C | |
| Montage | G 1/4 Außengewinde (DIN EN ISO 1179-2), M5 Innengewinde | |
| Produkt-Art | Drucksensor | |
| Schaltfunktion | Schließer/Öffner | |
| Spannung | 18-30 VDC |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 90262020 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
