SDP110 | IFM electronic

Name: Air gap sensor, 0.8-100 l/min, 0.3-33.2 m/s, 0.05-6 m³/h, 18-30 VDC, SDP110
Brand: IFM electronic
SKU: 82P8936
Price: 1,442.14 EUR
Availability: OutOfStock

Air gap sensor, 0.8-100 l/min, 0.3-33.2 m/s, 0.05-6 m³/h, 18-30 VDC, SDP110

Order No.: 82P8936

EAN: 4021179335867

MPN:

SDP110

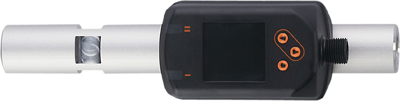

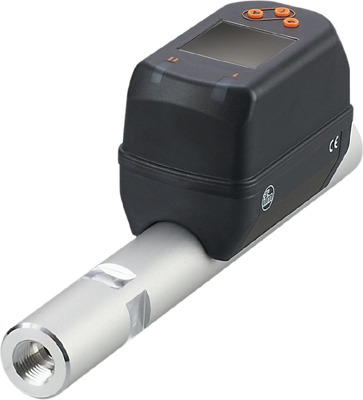

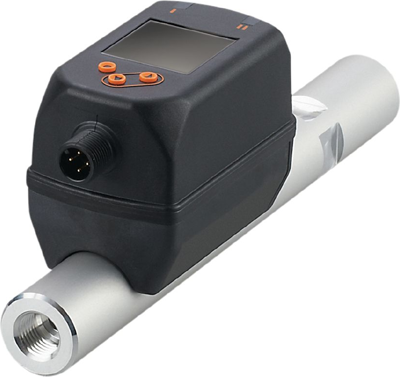

SDP110 IFM electronic Pressure Sensors Image 3

Image may differ

Key Specification:

Product type Luftspaltsensor

Version IO-Link, PNP/NPN, 2 digitale Ausgänge, 1 analog Ausgang

measurement range 0,8-100 l/min, 0,3-33,2 m/s, 0,05-6 m³/h

Latching switching function Schließer/Öffner

Voltage 18-30 VDC

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1,442.1372 € *

Available: 0 pcs.

Leadtime: 1 Week **

Total Price:

1,442.14 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Air gap sensor, SDP110, IFM electronic

Air gap sensor provided as absolute value.

Features

Precise values at all times thanks to pressure-compensated measuring principle
Enables zero gap and clogging detection

Technical specifications

	Connection	M12-Steckverbinder
	Version	IO-Link, PNP/NPN, 2 digitale Ausgänge, 1 analog Ausgang
	Length	182 mm
	max. operating temperature	60 °C
	measurement range	0,8-100 l/min, 0,3-33,2 m/s, 0,05-6 m³/h
	min. operating temperature	0 °C
	Product type	Luftspaltsensor
	Latching switching function	Schließer/Öffner
	Voltage	18-30 VDC
