GG855S | IFM electronic

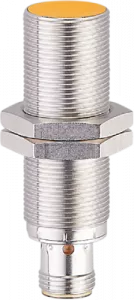

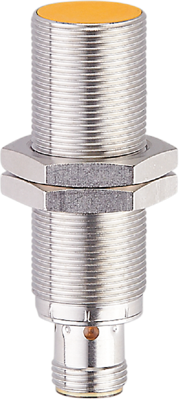

Inductive safety sensor, flush mounting M18, flush, 2 OSSD, 32 V (DC), 50 mA, GG855S
Order No.: 82P4969
EAN: 4021179330909
MPN:
GG855S
Unit Price (€ / pc.)
157.2823 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
157.28 € *
Price list
Quantity
Price per unit*
1 pcs.
157.2823 €
3 pcs.
152.9269 €
5 pcs.
148.8095 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fail-safe inductive sensor, GG855S, IFM electronic
Features
- Certified to the following standards: EN 60947-5-3, IEC 61508 and ISO 13849
- Connection to safety PLC, safe AS-i modules or safe evaluation units
- Ensuring operator and machine safety
Technical specifications
Anschluss | M12-Steckverbinder | |
Ausführung | PNP | |
Erfassungsabstand | > 7,5 mm | |
Länge | 60 mm | |
Montage | Einbaumontage M18, bündig | |
Produkt-Art | Induktiver Sicherheitssensor | |
Schaltfunktion | 2 OSSD | |
Schaltspannung (DC) | 32 V | |
Schaltstrom | 50 mA | |
Schutzart (IP) | IP65/IP67/IP68/IP69K |
Download
Logistics
Ursprungsland | DE |
Zolltarifnummer | 85365019 |
Compliance
RoHS konform | Yes |
Stand der RoHS-Richtlinie | 3/31/15 |
SVHC frei | Yes |
