IES217 | IFM electronic
IES217, Inductive sensor, M8 x 1 / L = 30 mm, Sensinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P5196
EAN: 4021179320948
MPN:
IES217
Unit Price (€ / pc.)
82.2528 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
82.25 € *
Price list
Quantity
Price per unit*
1 pcs.
82.2528 €
3 pcs.
78.6947 €
5 pcs.
75.4222 €
*incl. VAT plus shipping costs
**Subject to prior sale

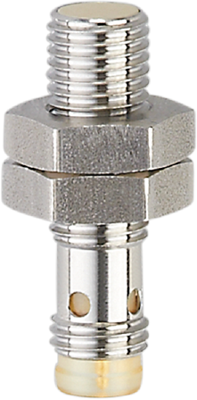

Inductive sensor, IES217, IFM electronic
Features
- Suitable for industrial, mobile, cooling and lubricating applications
- High protection rating for the requirements of harsh industrial environments
- Flexible use thanks to large operating temperature range
- Safe detection due to large sensing range and low sensor tolerances
- Reduced storage due to wide range of applications
Technical specifications
| Connection | M8-connector | |
| Version | inductive sensor | |
| Detection range | 3 mm | |
| Assembly | flush mounting | |
| Latching switching function | 1 Form B (N/C) | |
| Switching Voltage (DC) | 30 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
