IES235 | IFM electronic
IES235, Inductive sensor, M8 x 1 / L = 50 mm, Sensinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P5215
EAN: 4021179334099
MPN:
IES235
Unit Price (€ / pc.)
84.8232 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
84.82 € *
Price list
Quantity
Price per unit*
1 pcs.
84.8232 €
3 pcs.
81.1461 €
5 pcs.
77.7784 €
*incl. VAT plus shipping costs
**Subject to prior sale

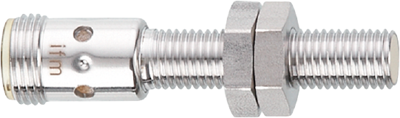

Inductive sensor, IES235, IFM electronic
Features
- Suitable for industrial, mobile, cooling and lubricating applications
- High protection rating for the requirements of harsh industrial environments
- Flexible use thanks to large operating temperature range
- Safe detection due to large sensing range and low sensor tolerances
- Reduced storage due to wide range of applications
Technical specifications
| Connection | M12-connector | |
| Version | inductive sensor | |
| Detection range | 3 mm | |
| Assembly | flush mounting | |
| Latching switching function | 1 Form B (N/C) | |
| Switching Voltage (DC) | 30 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
