IF5538 | IFM electronic
Inductive sensor, PNP, flush mounting M12, flush, 1 Form A (N/O), 30 V (DC), 100 mA, IF5538
Order No.: 82P5284
EAN: 4021179095983
MPN:
IF5538
Unit Price (€ / pc.)
94.5931 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
94.59 € *
Price list
Quantity
Price per unit*
1 pcs.
94.5931 €
3 pcs.
91.9870 €
5 pcs.
89.5118 €
*incl. VAT plus shipping costs
**Subject to prior sale

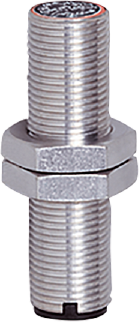

Inductive sensor, IF5538, IFM electronic
Features
- Particularly short housing for use where space is restricted
- Clearly visible indication of the switching status
- Long sensing range for high uptime
- Robust metal housing for use in harsh industrial environments
- Very high switching frequency
Technical specifications
| Connection | M12-Steckverbinder | |
| Version | PNP | |
| Detecting distance | 2 mm | |
| Length | 45 mm | |
| Assembly | Einbaumontage M12, bündig | |
| Product type | Induktiver Sensor | |
| Latching switching function | 1 Schließer | |
| Switching Voltage (DC) | 30 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
