IFT217 | IFM electronic
Inductive sensor, non-flush mounting, 1 Form A (N/O), 30 V (DC), 100 mA, Detection range 7 mm, IFT217
Order No.: 82P5541
EAN: 4021179087162
MPN:
IFT217
Unit Price (€ / pc.)
95.5927 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
95.59 € *
Price list
Quantity
Price per unit*
1 pcs.
95.5927 €
3 pcs.
92.9509 €
5 pcs.
90.4519 €
*incl. VAT plus shipping costs
**Subject to prior sale

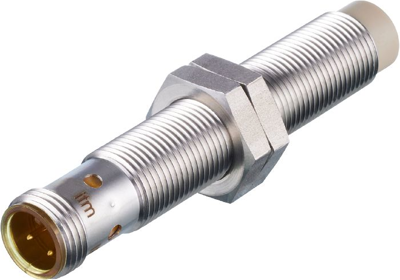

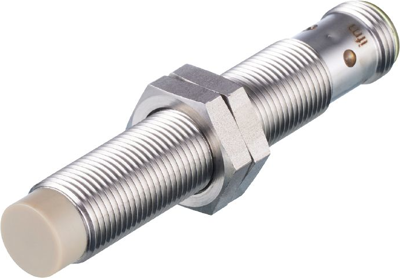

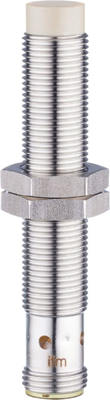

Inductive sensor, IFT217, IFM electronic
Features
- Wide operating temperature range
- High protection rating for the requirements of harsh industrial environments
- Resistant to high-pressure cleaning with aggressive cleaning agents
- Robust stainless steel housing for use in the food and beverage industry
- Temperature shock resistant even in case of frequent temperature fluctuations
Technical specifications
| Connection | M12-connector | |
| Version | inductive sensor | |
| Detection range | 7 mm | |
| Assembly | non-flush mounting | |
| Latching switching function | 1 Form A (N/O) | |
| Switching Voltage (DC) | 30 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
