IFT258 | IFM electronic

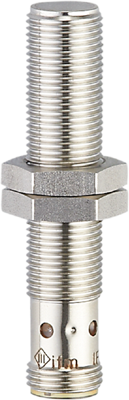

Inductive sensor, PNP/NPN, IO-Link, flush mounting M12, flush, 1 Form A (N/O) + 1 Form B (N/C), 30 V (DC), 100 mA, IFT258
Order No.: 82P5548
EAN: 4021179316354
MPN:
IFT258
Unit Price (€ / pc.)
99.3174 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
99.32 € *
Price list
Quantity
Price per unit*
1 pcs.
99.3174 €
3 pcs.
96.5685 €
5 pcs.
93.9743 €
*incl. VAT plus shipping costs
**Subject to prior sale
Inductive sensor, IFT258, IFM electronic
Features
- For a precise position monitoring on machines
- Flexible use thanks to large operating temperature range
- Very high repeatability
Technical specifications
| Connection | M12-Steckverbinder | |
| Version | PNP/NPN, IO-Link | |
| Detecting distance | Schaltpunkt 0,7-3,51 mm, Messbereich 0,375-3,75 mm | |
| Length | 60 mm | |
| Assembly | Einbaumontage M12, bündig | |
| Product type | Induktiver Ganzmetallsensor | |
| Latching switching function | 1 Schließer + 1 Öffner | |
| Switching Voltage (DC) | 30 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
