IG5526 | IFM electronic
IG5526, Inductive sensor, M18 x 1 / L = 80 mm, Seninfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P5616
EAN: 4021179111836
MPN:
IG5526
Unit Price (€ / pc.)
87.8815 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
87.88 € *
Price list
Quantity
Price per unit*
1 pcs.
87.8815 €
3 pcs.
85.4420 €
5 pcs.
83.1453 €
*incl. VAT plus shipping costs
**Subject to prior sale

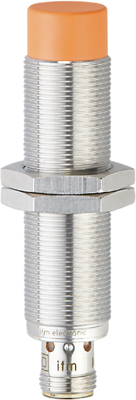

Inductive sensor, IG5526, IFM electronic
Features
- Robust metal housing for use in harsh industrial environments
- Wide operating temperature range
- High protection rating for the requirements of harsh industrial environments
Technical specifications
| Connection | M12-connector | |
| Version | inductive sensor | |
| Detection range | 8 mm | |
| Assembly | non-flush mounting | |
| Latching switching function | 1 Form A (N/O) | |
| Switching Voltage (DC) | 30 V | |
| switching current | 200 mA | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
