IGC240 | IFM electronic

Inductive sensor, PNP, flush mounting M18, not flush, 1 Form A (N/O), 30 V (DC), 100 mA, IGC240

Order No.: 82P8877
EAN: 4021179293822
MPN:
IGC240

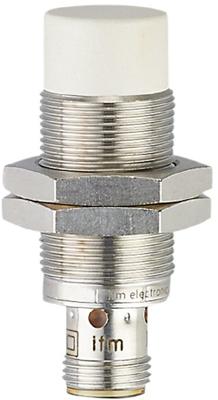

IGC240 IFM electronic Proximity Switches, Reed switches Image 1

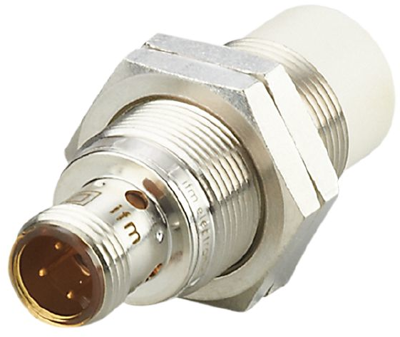

IGC240 IFM electronic Proximity Switches, Reed switches Image 2

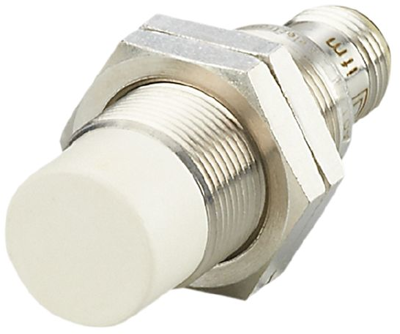

IGC240 IFM electronic Proximity Switches, Reed switches Image 3
Image may differ
Unit Price (€ / pc.)
82.705 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
82.71 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
82.705 €

Inductive sensor, IGC240, IFM electronic

Inductive sensor for use in machine tools and metalworking.

Features

  • Permanently legible laser type label
  • Clearly visible indication of the switching status
  • High protection rating for the requirements of harsh industrial environments
  • Resistant to oils and coolants
Technical specifications
Connection M12-Steckverbinder
Version PNP
Detecting distance 12 mm
Length 50 mm
Assembly Einbaumontage M18, nicht bündig
Product type Induktiver Sensor
Latching switching function 1 Schließer
Switching Voltage (DC) 30 V
switching current 100 mA
Degree of protection (IP) IP68
Logistics
Country of origin RO
Customs tariff number 85365019
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
