IGS278 | IFM electronic

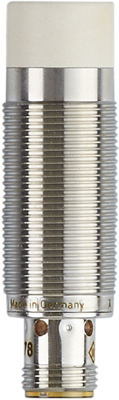

IGS278, Inductive sensor, M18 x 1 / L = 60 mm, Seninfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P5797
EAN: 4021179288552
MPN:
IGS278
Unit Price (€ / pc.)
88.3218 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
88.32 € *
Price list
Quantity
Price per unit*
1 pcs.
88.3218 €
3 pcs.
84.5019 €
5 pcs.
80.9914 €
*incl. VAT plus shipping costs
**Subject to prior sale
Inductive sensor, IGS278, IFM electronic
Features
- Suitable for industrial, mobile, cooling and lubricating applications
- High protection rating for the requirements of harsh industrial environments
- Correction factor 1: Constant sensing range on all metals
- Very high switching frequency
- Vibration and shock resistant
Technical specifications
| Connection | M12-connector | |
| Version | inductive sensor | |
| Detection range | 15 mm | |
| Assembly | non-flush mounting | |
| Latching switching function | 1 Form A (N/O) | |
| Switching Voltage (DC) | 30 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
