IGT250 | IFM electronic
IGT250, Inductive sensor, M18 x 1 / L = 70 mm, Seninfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P5855
EAN: 4021179261463
MPN:
IGT250
Unit Price (€ / pc.)
125.2237 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
125.22 € *
Price list
Quantity
Price per unit*
1 pcs.
125.2237 €
3 pcs.
121.7608 €
5 pcs.
118.4883 €
*incl. VAT plus shipping costs
**Subject to prior sale

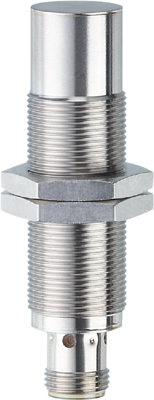

Inductive sensor, IGT250, IFM electronic
Features
- Robust full-metal housing from stainless steel for use in the food and beverage industry
- Wide operating temperature range
- Temperature shock resistant even in case of frequent temperature fluctuations
- Resistant to high-pressure cleaning with aggressive cleaning agents
- Long sensing range for high uptime
Technical specifications
| Connection | M12-connector | |
| Version | inductive sensor | |
| Detection range | 12 mm | |
| Assembly | non-flush mounting | |
| Latching switching function | 1 Form A (N/O) | |
| Switching Voltage (DC) | 30 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP65/IP67/IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
