IGT263 | IFM electronic
IGT263, Inductive sensor, M18 x 1 / L = 40 mm, Seninfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P5860
EAN: 4021179335195
MPN:
IGT263
Unit Price (€ / pc.)
105.6125 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
105.61 € *
Price list
Quantity
Price per unit*
1 pcs.
105.6125 €
3 pcs.
102.6970 €
5 pcs.
99.9362 €
*incl. VAT plus shipping costs
**Subject to prior sale

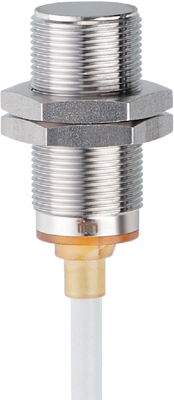

Inductive sensor, IGT263, IFM electronic
Features
- Metal sensing face for heavy duty
- Compact housing for use where space is restricted
- Large operating temperature range up to 100 °C
- Clearly visible indication of the switching status
Technical specifications
| Connection | cable connection 2 m | |
| Version | inductive sensor | |
| Detection range | 8 mm | |
| Assembly | flush mounting | |
| Latching switching function | 1 Form A (N/O) | |
| Switching Voltage (DC) | 30 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
