II0036 | IFM electronic

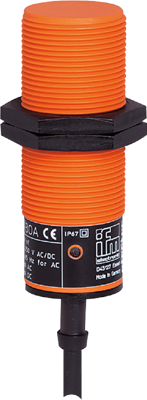

Inductive sensor, PBT, flush mounting M30, not flush, 1 Form A (N/O), 250 V (DC), 100 mA, II0036
Order No.: 82P5870
EAN: 4021179118835
MPN:
II0036
Unit Price (€ / pc.)
151.2371 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
151.24 € *
Price list
Quantity
Price per unit*
1 pcs.
151.2371 €
3 pcs.
147.0602 €
5 pcs.
143.1094 €
*incl. VAT plus shipping costs
**Subject to prior sale
Inductive sensor, II0036, IFM electronic
Features
- With combined AC/DC output stage
- Large operating voltage range
- Two-wire technology
- Wide operating temperature range
- High protection rating for the requirements of harsh industrial environments
Technical specifications
| Connection | Kabel, PVC 2x0,5 mm², 6 m | |
| Version | PBT | |
| Detecting distance | 15 mm | |
| Length | 81 mm | |
| Assembly | Einbaumontage M30, nicht bündig | |
| Product type | Induktiver Sensor | |
| Latching switching function | 1 Schließer | |
| Switching Voltage (AC) | 250 V | |
| Switching Voltage (DC) | 250 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
