II504A | IFM electronic
II504A, Inductive sensor, M30 x 1.5 / L = 65 mm, Sinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P5885
EAN: 4021179266185
MPN:
II504A
Unit Price (€ / pc.)
138.2423 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
138.24 € *
Price list
Quantity
Price per unit*
1 pcs.
138.2423 €
3 pcs.
134.4224 €
5 pcs.
130.8048 €
*incl. VAT plus shipping costs
**Subject to prior sale

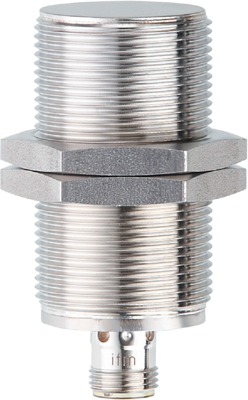

Inductive sensor, II504A, IFM electronic
Features
- For applications in hazardous areas
- High protection rating for the requirements of harsh industrial environments
- Metal sensing face for heavy duty
- Special mechanical stability ensures high plant safety
- Clearly visible indication of the switching status
Technical specifications
| Connection | M12-connector | |
| Version | inductive sensor | |
| Detection range | 10 mm | |
| Assembly | flush mounting | |
| Latching switching function | 1 Form A (N/O) | |
| Switching Voltage (DC) | 30 V | |
| switching current | 40 mA | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
