II505A | IFM electronic

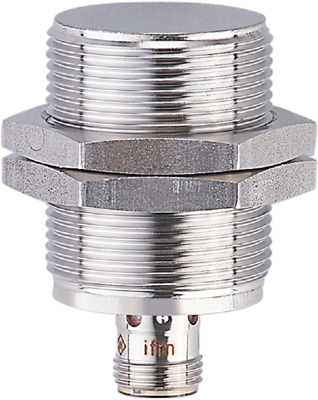

Inductive sensor, PNP, flush mounting M30, flush, 1 Form A (N/O), 30 V (DC), 100 mA, II505A
Order No.: 82P5886
EAN: 4021179324427
MPN:
II505A
Unit Price (€ / pc.)
114.4780 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
114.48 € *
Price list
Quantity
Price per unit*
1 pcs.
114.4780 €
3 pcs.
111.3126 €
5 pcs.
108.3138 €
*incl. VAT plus shipping costs
**Subject to prior sale
Inductive sensor, II505A, IFM electronic
Features
- For applications in hazardous areas
- High protection rating for the requirements of harsh industrial environments
- Metal sensing face for heavy duty
- Special mechanical stability ensures high plant safety
- Clearly visible indication of the switching status
Technical specifications
| Connection | M12-Steckverbinder | |
| Version | PNP | |
| Detecting distance | 15 mm | |
| Length | 50 mm | |
| Assembly | Einbaumontage M30, bündig | |
| Product type | Induktiver Ganzmetallsensor | |
| Latching switching function | 1 Schließer | |
| Switching Voltage (DC) | 30 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
