II5986 | IFM electronic
II5986, Inductive sensor, M30 x 1.5 / L = 70 mm, Minfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P5959
EAN: 4021179332590
MPN:
II5986
Unit Price (€ / pc.)
171.5504 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
171.55 € *
Price list
Quantity
Price per unit*
1 pcs.
171.5504 €
3 pcs.
167.0641 €
*incl. VAT plus shipping costs
**Subject to prior sale

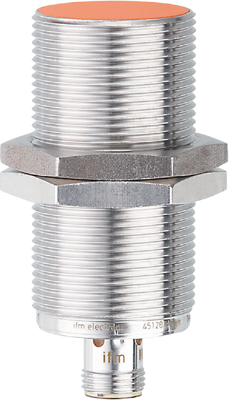

Inductive sensor, II5986, IFM electronic
Features
- Precise linearised output signal
- Very high repeatability
- For non-contact distance measurement
- Wide operating temperature range
- Robust metal housing for use in harsh industrial environments
Technical specifications
| Connection | M12-connector | |
| Version | inductive sensor | |
| Detection range | 1-10 mm | |
| Assembly | flush mounting | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Switching Voltage (DC) | 30 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
