IIM208 | IFM electronic
Inductive sensor, PNP, flush mounting M30, flush, 1 Form A (N/O), 60 V (DC), 200 mA, IIM208
Order No.: 82P5994
EAN: 4021179117821
MPN:
IIM208
Unit Price (€ / pc.)
115.4895 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
115.49 € *
Price list
Quantity
Price per unit*
1 pcs.
115.4895 €
3 pcs.
112.2884 €
5 pcs.
109.2658 €
*incl. VAT plus shipping costs
**Subject to prior sale

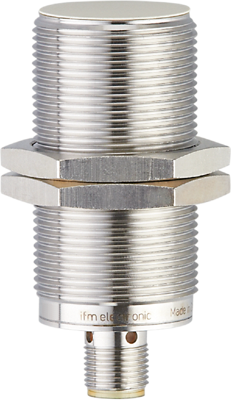

Inductive sensor, IIM208, IFM electronic
Features
- High shock and vibration resistance for use in mobile machines
- E1 type approval by the Kraftfahrt-Bundesamt (German Federal Motor Transport Authority)
- Large operating temperature and operating voltage range
- High ingress protection for the requirements of harsh environmental conditions
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | PNP | |
| Erfassungsabstand | 12 mm | |
| Länge | 70 mm | |
| Montage | Einbaumontage M30, bündig | |
| Produkt-Art | Induktiver Sensor | |
| Schaltfunktion | 1 Schließer | |
| Schaltspannung (DC) | 60 V | |
| Schaltstrom | 200 mA | |
| Schutzart (IP) | IP67/IP69K |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85365019 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
