IIR204 | IFM electronic
IIR204, Inductive sensor, M30 x 1.5 / L = 40 mm, Sinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P6007
EAN: 4021179254687
MPN:
IIR204
Unit Price (€ / pc.)
137.3855 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
137.39 € *
Price list
Quantity
Price per unit*
1 pcs.
137.3855 €
3 pcs.
133.5775 €
5 pcs.
129.9837 €
*incl. VAT plus shipping costs
**Subject to prior sale

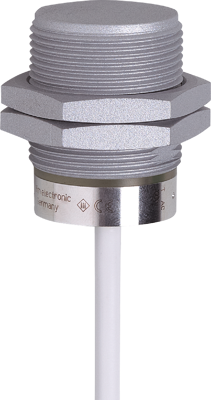

Inductive sensor, IIR204, IFM electronic
Features
- Resistant to weld slag thanks to non-stick coating
- Metal sensing face for heavy duty
- High shock and vibration resistance
- Particularly short housing for use where space is restricted
- Two-wire technology
Technical specifications
| Connection | cable connection 3 m | |
| Version | inductive sensor | |
| Detection range | 12 mm | |
| Assembly | flush mounting | |
| Latching switching function | 1 Form A (N/O) | |
| Switching Voltage (DC) | 30 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
