IN5230 | IFM electronic
IN5230, Inductive sensor, 40 x 12 x 26 mm, Sensinginfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P6195
EAN: 4021179134934
MPN:
IN5230
Unit Price (€ / pc.)
107.1952 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
107.20 € *
Price list
Quantity
Price per unit*
1 pcs.
107.1952 €
3 pcs.
104.2321 €
5 pcs.
101.4237 €
*incl. VAT plus shipping costs
**Subject to prior sale

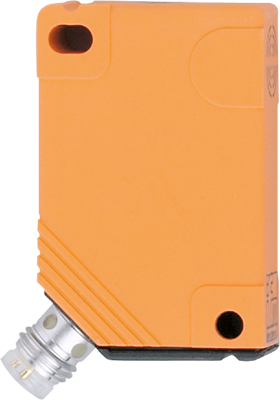

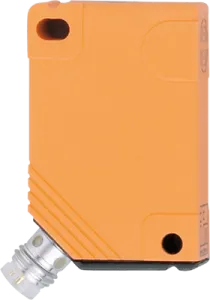

Inductive sensor, IN5230, IFM electronic
Features
- Particularly space-saving rectangular housing
- For use where space is restricted
- With space-saving M8 connector
- Very high switching frequency
- Wide operating temperature range
Technical specifications
| Connection | M8-connector | |
| Version | inductive sensor | |
| Detection range | 2 mm | |
| Assembly | flush mounting | |
| Latching switching function | 1 Form A (N/O) | |
| Switching Voltage (DC) | 36 V | |
| switching current | 250 mA | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
